11 Gal (Vertical) Fuel Tank

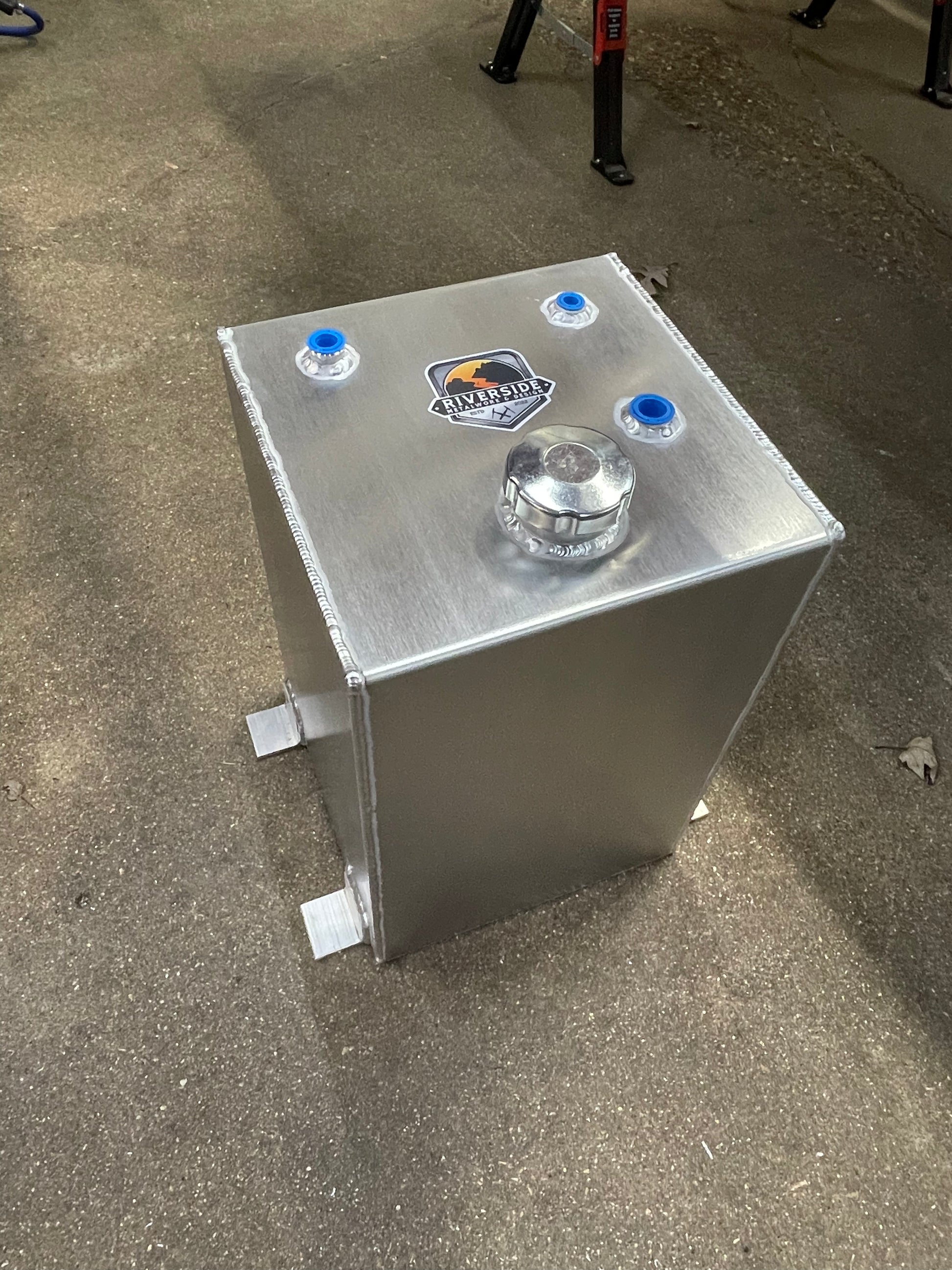

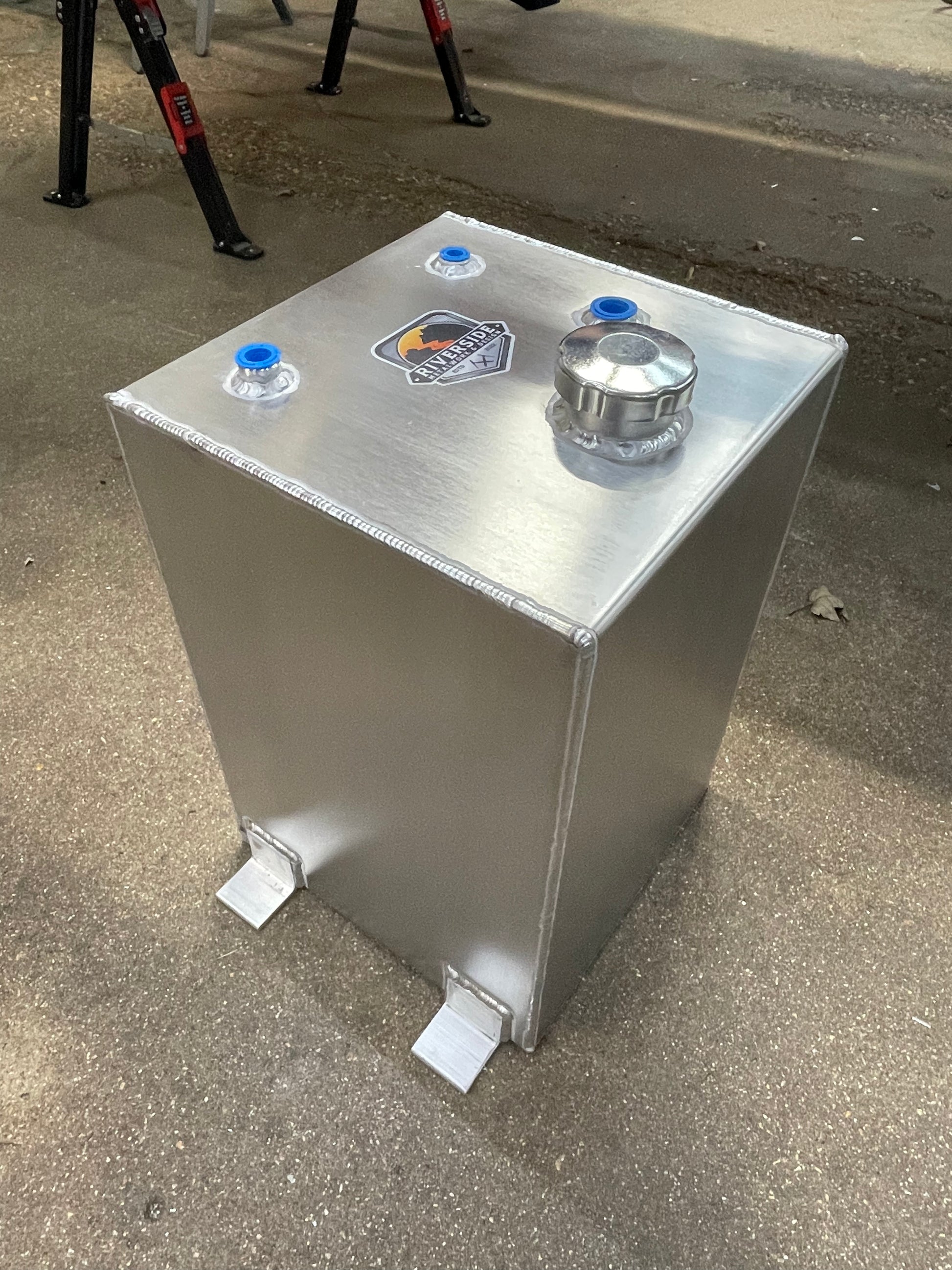

Our 11 Gallon vertical aluminum auxiliary fuel tank is perfect for applications that require a compact footprint, but enough capacity to get through a day with 1-2 machines. All of our fuel tanks are built and pressure tested in house to ensure they’re 100% leak free. They are constructed from 1/8” aluminum sheet to avoid cracking due to flexing or flimsiness. These are quality tanks built to last.

Dimensions: 12”L x 12”W x 18”H

Footprint 12” x 16”

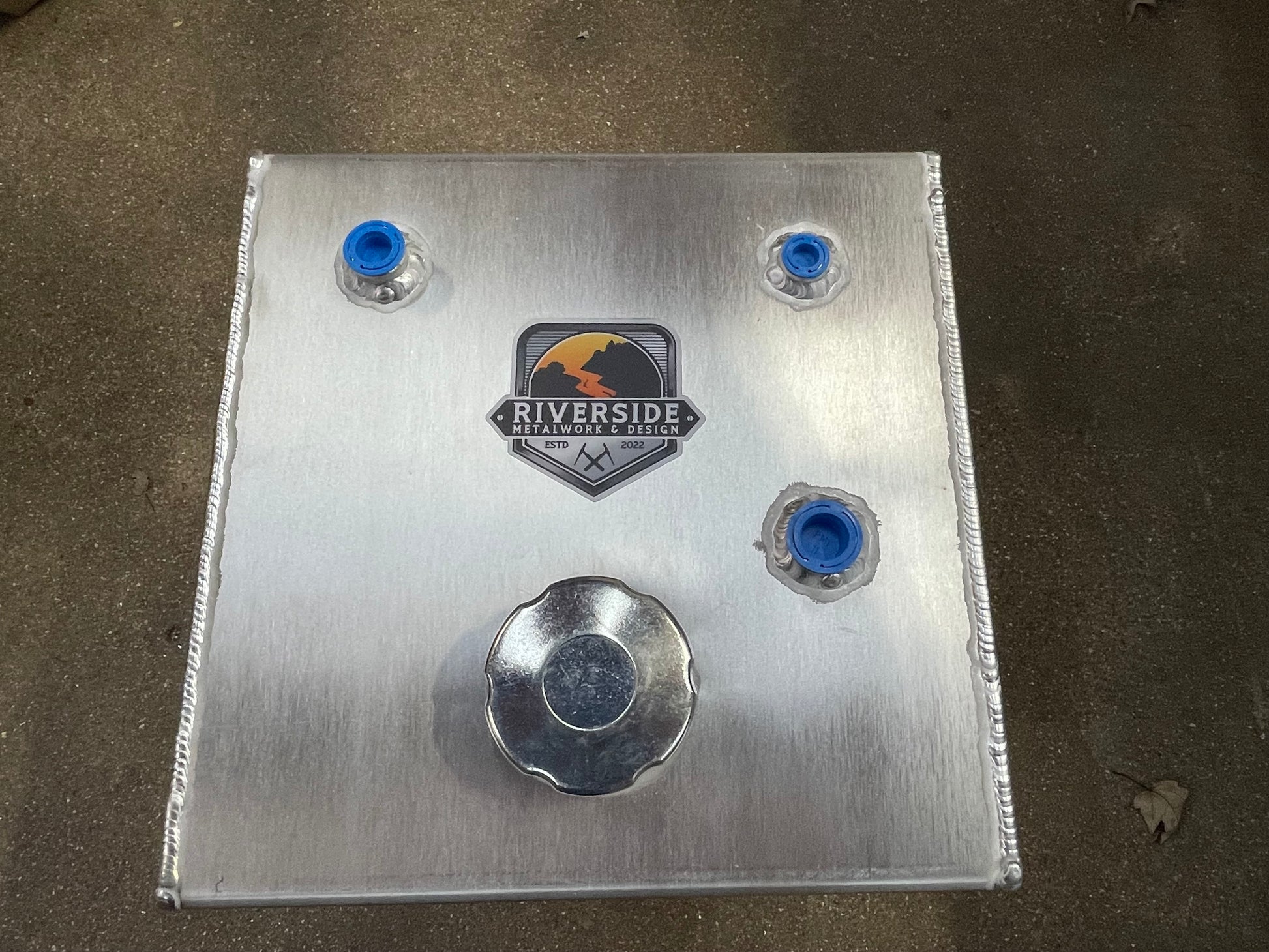

Fuel tanks come standard with:

• Vented Cap
• Single 3/8” NPT Pickup Tube
• 1/2” NPT Vent Port (for use with non vented cap)
• 1/4” NPT Return Port
• Sending Unit Flange & Blockoff Plate

Extras & Add Ons Available:

• Extra Pickup Tubes $50/ea
• Mechanical or Electronic Fuel Gauge $75+
• Rollover Vent & Non Vented Cap $29

Unless in stock, fuel tanks usually have a 1-2 week lead time.

**IMPORTANT**

** Vented caps will leak slightly from sloshing when the tank is full. To avoid this use a non vented cap and rollover vent.

**If installing in an enclosed space such as a van or box truck cargo area, we recommend using a non vented cap and rollover vent to avoid cap leakage, and direct vapors safely out of the compartment via the rollover vent hose barb.

**We DO NOT RECOMMEND splitting one pickup tube for multiple engines. Most engine manufacturers recommend 1 pickup tube per engine.

** These tanks are guaranteed to be leak free, functional, and meet the specifications above. We’ve found from our experience that they meet or exceed industry standards for auxiliary fuel tanks. RIVERSIDE METALWORK IS NOT RESPONSIBLE FOR ENSURING COMPATIBILITY OR PROPER INSTALLATION OF TANKS WITH YOUR SPECIFIC APPLICATION. IF YOU ARE UNSURE OF COMPATIBILITY OR HOW TO INSTALL WITH YOUR SYSTEM PLEASE CONSULT WITH US OR YOUR PREFERRED MECHANIC BEFORE PURCHASING.
